OUR PRODUCTS
S531 ultrasonic leak detector

Features
- Finds leaks in the compressed air or gas system easily even from distance
- High resolution 3.5” color touch screen, easing operations in leak detection
- Almost unlimited memory for leak records
- Wireless connection with headset
- Built-in camera to take photo of leak locations
- Voice recorder for voice memos
- Laser pointer to pinpoint leak locations
- Records leak information for statistics and repai
- Calculates air loss in l/min, m3/h or cfm and in the local currency
- Integrated noise reduction technology
- Battery capacity for up to 8 hours
S421 Flow and Consumption sensor for compressed air and gases (Inline-Sensor)

Features
- Easy and affordable sensor solution to measure the compressed air flow and consumption
- Sensor is calibrated in the measuring section, this allows a very high precsision
- Two calibration curves can be saved on to the sensors internal memory
- Due to the two calibration curves the sensor can b…sed with highest precision in two different gases
- Velocity, Flowrate, Consumption and Temperature are displayed
- IP65 protection class offers a rugged protection in rough industrial environment
- Isolated analog and pulse outputs or MODBUS/RTU interface
- Thermal mass flow measurement, pressure and temperature independent
- Very fast response time, high precision and wide measuring range
- Sensor with measuring section DN15... DN80
- Integrates seamlessly in your compressed air system
S418-V Vacuum Flow and Consumption Sensor for vacuum applications

Features
- Convenient installation, great flexibility, and can be installed anywhere
- Available as DN8, DN15, DN20 and DN25 (G female thread)
- Measures actual flow and absolute pressure
- Data logger integrated

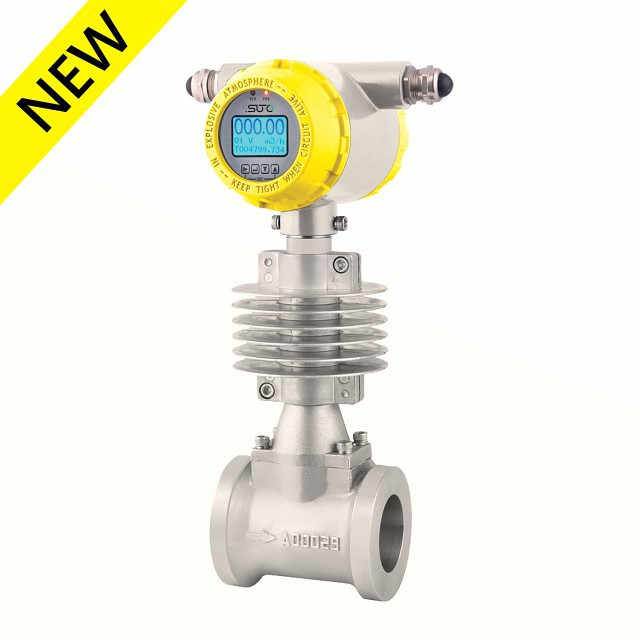

S435 Flow meter for Saturated steam

Features
- Measures saturated steam
- undefined
- Shows instant flow and consumption
- Provides a display and keys for settings
- Small pressure loss
- Robust industrial design with high-protection level
- Analog and Modbus outputs
- Wafer type—Easy to install
- No moving parts

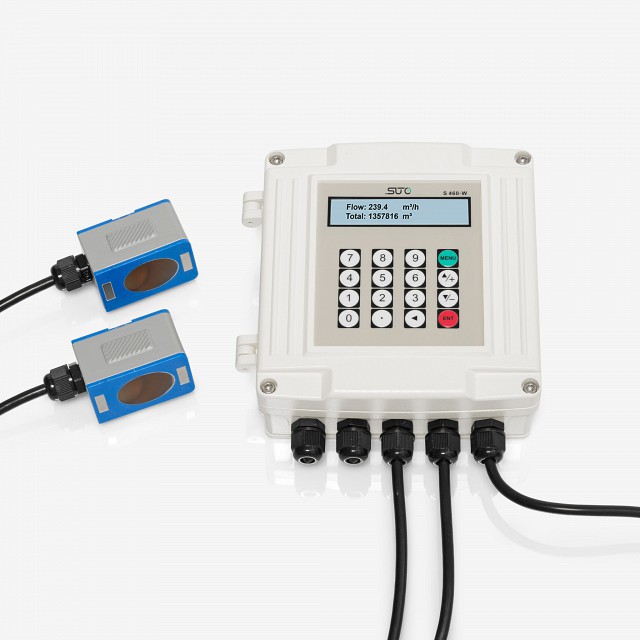

S460 Ultrasonic flow meter for water and other liquids

Features
- Easy to install for permanent and temporary installations
- High accuracy
- Physical units can be selected
- Excellent price performance
- Suitable for DN32 – DN6000
- Plug & play for SUTO display & data logger

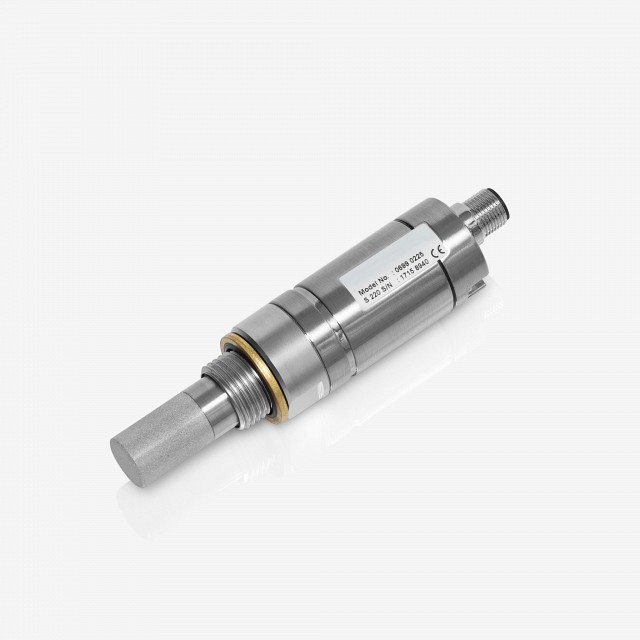

S220 Dew point sensor for compressed air and gases (-100 … 0 °C Td)

Features
- Very fast response time ensures safe and reliable …ation whenever dew points are out of valid ranges
- Small size makes it ideal for dryer installations
- Measures dew points down to –100 °C Td
- New SUTO sensor technology
- Version with integrated pressure measurement
- Various output versions available: 1 x 4 … 20 mA, … … 20 mA, RS-485 (Modbus), 4 … 20 mA loop powered
- IP65 casing provides robust protection in rough industrial environment
- Can be installed directly into dryers through G 1/2” thread
- High accuracy of ±2 °C dew point
- M12 connector

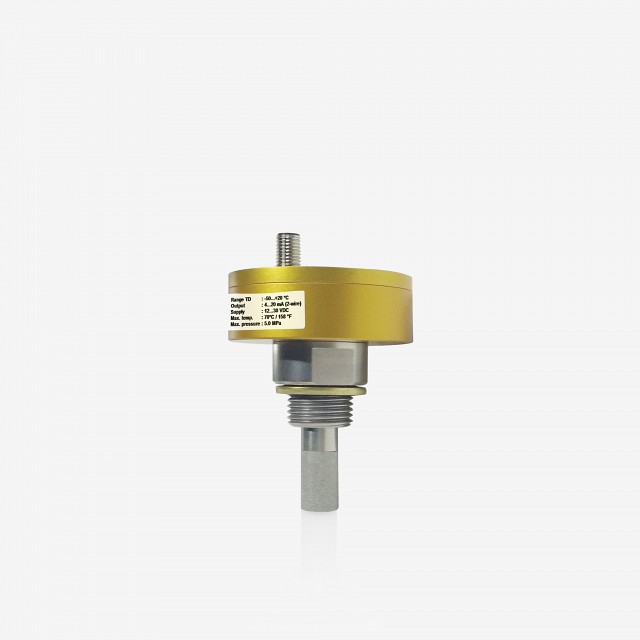

S217 OEM Dew point sensor for compressed air and gases (-50 … +50 °C Td)

Features
- Small size makes it ideal for dryer installations
- Measures dew points down to -50 °C Td
- 2-wire or 3-wire output
- IP65 casing provides robust protection in rough industrial environment
- Very fast response time ensures safe and reliable …ation whenever dew points are out of valid ranges
- Can be installed directly into dryers through G 1/2” thread
- High accuracy of 1 °C ... 2 °C dew point
- Withstands condensation
- M8 connector and cable with open wires

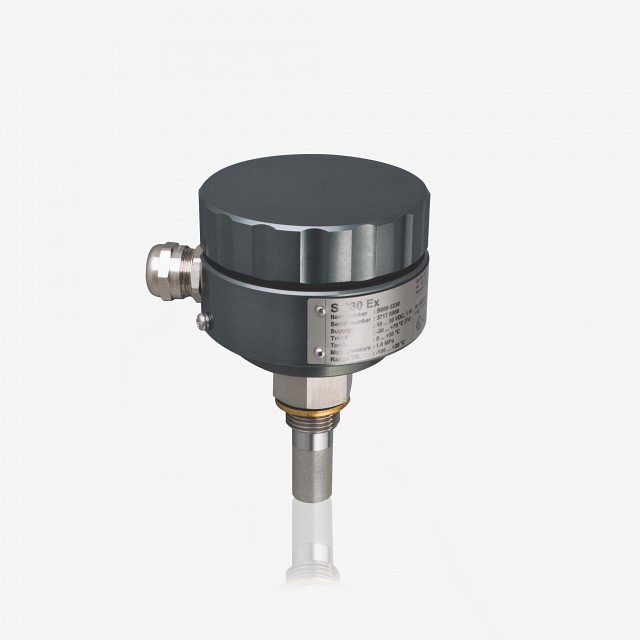

S230/231 Dew point sensor for compressed air and gases (-100 … +20 °C Td)

Features
- Dew point sensor for compressed air and other gases
- With optional ATEX, IECEx approval
- Dual sensor system combines QCM and polymer technology
- For low dew point applications down to -100 °C Td
- IP65 casing provides robust protection in rough industrial environment
- Fast response time ensures safe and reliable indication whenever dew points are out of valid ranges
- Analog 4... 20 mA and MODBUS RTU output
- High accuracy over the whole range

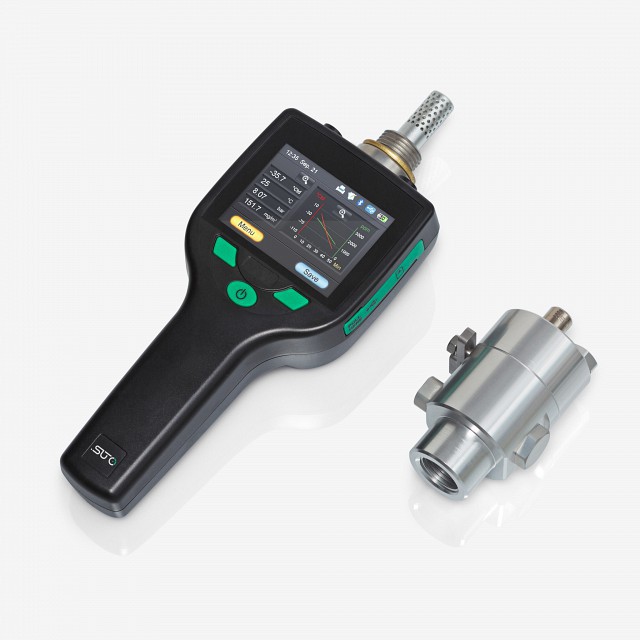

S505 Dew point meter for compressed air and gases (-100 … +50 °C Td)

Features
- Portable dew point meter
- Measures dew point, temperature and pressure (all in one instrument)
- 3 sensor solutions available:
Q: -100 … -30 °C… covering the full range of dew point measurement - Modern color touch screen interface
- Data logger, USB interface, wireless communication connection to portable printer
- Measuring / parking chamber for fast sensor response
- Application software included
